A Portable Sensing Device Measuring Grass Seed Moisture in Seconds

Background

In grass seed production, seed moisture content (SMC) is a critical indicator of harvest timing. Harvesting at high SMC leads to poor germination and storage spoilage, while harvesting at low SMC results in severe seed shattering that reduces production.

Between rows under swath at early cut timing — Between rows under swath — early cut timing

Between rows under swath at late cut timing — Between rows under swath — late cut timing

The Problem with the Current Method

The traditional method for determining SMC involves obtaining representative seed head samples from the field, stripping seed from the heads, weighing the seed before and after drying, and calculating SMC as a percentage. This process is time consuming, requires travel to a central location for sample processing, and sometimes occurs after the SMC has already fallen below recommended levels for swathing, or after long periods of transport which may influence accurate SMC estimation.

There is a pressing need for a more efficient method for determining SMC in grass seed crops so that timely harvest decisions can be made, especially when multiple fields need to be tested in a single day.

Stripping seed from seed heads in the field

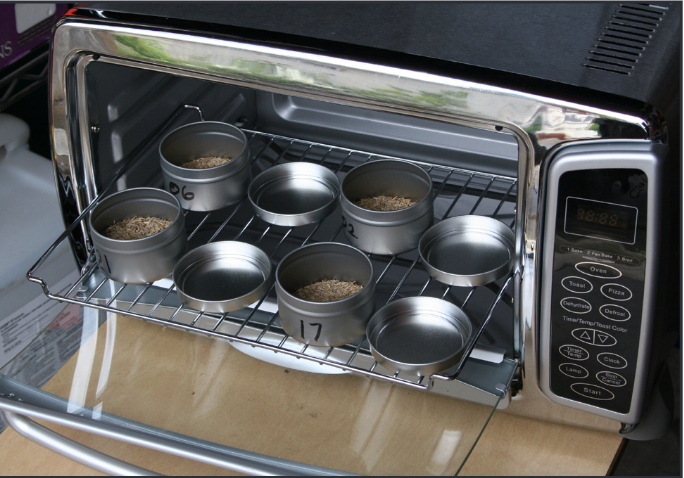

Oven drying seed samples at a central location — Oven drying seed samples — the current method for determining SMC

Approach: Identifying Sensitive Spectral Wavelengths

The project first aimed to identify the most sensitive spectral wavelengths to moisture in seeds. Using hyperspectral instruments, the team characterized the near-infrared (NIR) spectral response of seeds at varying moisture levels. The working principle leverages the fact that water molecules absorb light at specific NIR wavelengths; by measuring the amount of light absorbed, we can infer moisture content in the seed.

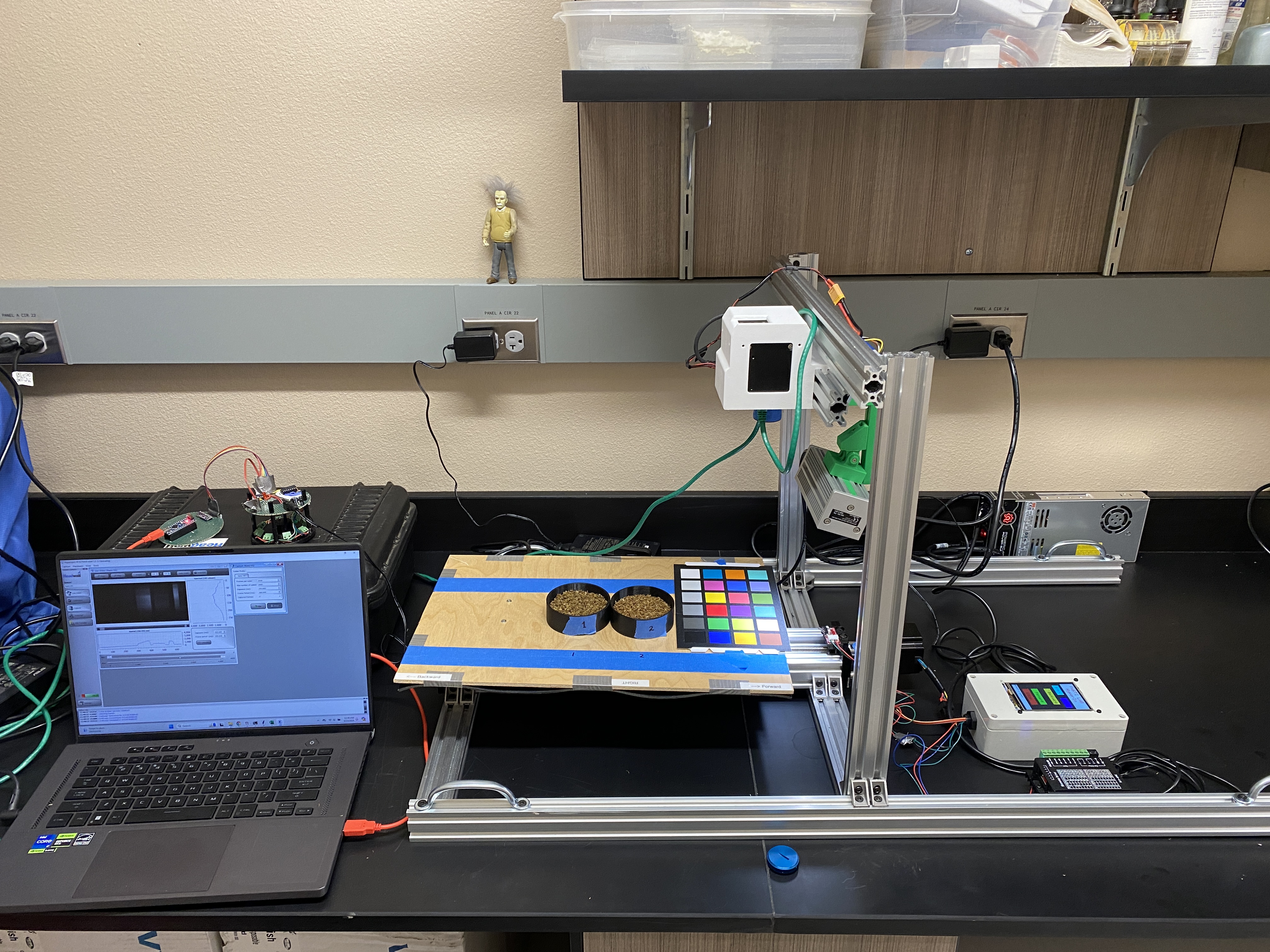

Hyperspectral imaging setup to determine sensitive spectral wavelengths — Hyperspectral imaging setting to determine sensitive spectral wavelengths to moisture in seeds

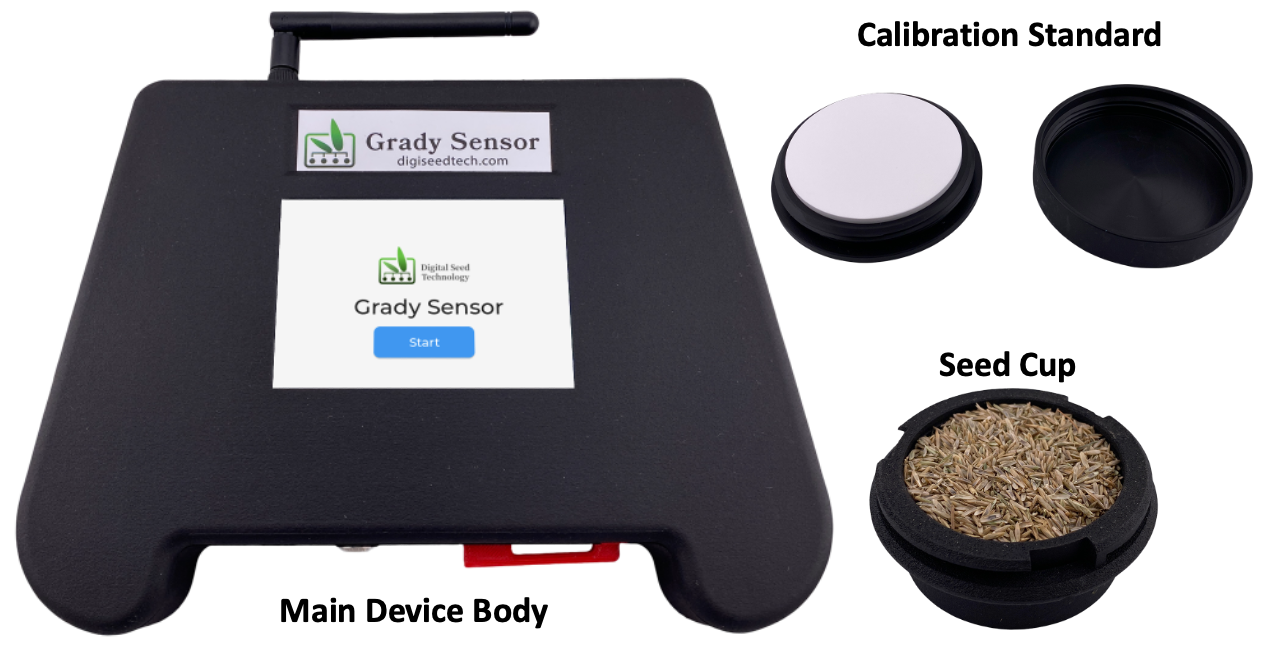

The Grady Sensor

The team designed and developed the Grady Sensor, including the main device body, a seed cup, and calibration standards. The sensor delivers SMC readings in seconds, eliminating the need for sample transport and lab processing.

Performance

The Grady Sensor is calibrated for eight grass seed species: tall fescue (Schedonorus arundinaceus (Shreb.) Dumort.), annual ryegrass (Lolium perenne L. ssp. multiflorum (Lam.) Husnot), perennial ryegrass (Lolium perenne L.), orchardgrass (Dactylis glomerata L.), creeping red fescue (Festuca rubra L. subsp. rubra), creeping bentgrass (Agrostis stolonifera L.), Chewings fescue (Festuca rubra L. subsp. fallax (Thuill.) Nyman), and Kentucky bluegrass (Poa pratensis L.). The Grady Sensor achieves a mean error of 1.2–4.6% across these eight species, and is proven to be a convenient and cost-effective means of SMC assessment in many economically important cool-season grass crop species.

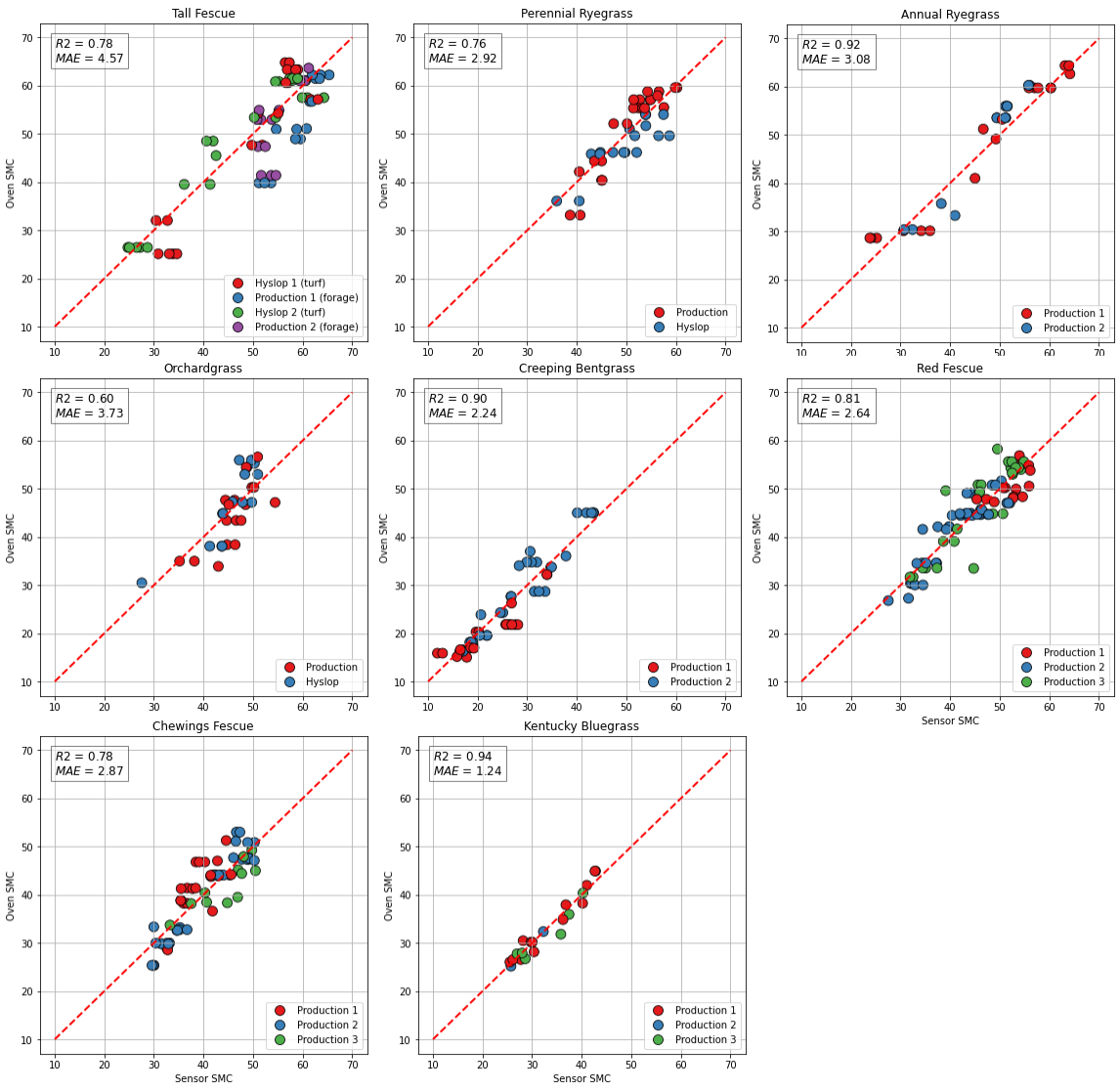

Accuracy results for 8 grass seed species — The relationship between near-infrared (NIR) sensor seed moisture content (SMC) and laboratory oven-derived SMC for eight grass seed crop species

Availability

The Grady Sensor is now commercially available through Digital Seed Technology Inc.
